Board-to-Board-Steckverbinder JAE Connectors - Angebot JAE|Japanese Avionics PS Series 2.54mm Pitch Board-to-Board Receptacle Connectors

Kategorisierung:Markenstecker

Fachvertrieb von: Steckverbinder | Kabelsatz | Kabelprodukte

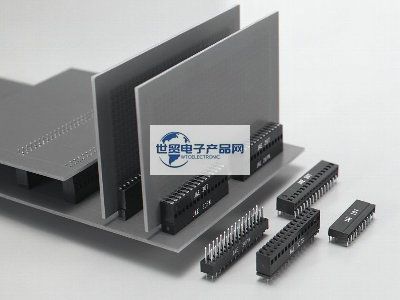

JAE|JAE Connectors|Japanese Avionics PS Series 2.54mm Pitch Board-to-Board Receptacle Connector ist ein: 2.54mm Pitch Receptacle für Board-to-Board Verbindung, kompatibel mit PS Series Original Pin Header, Parallel/Perpendicular Board-to-Board Verbindung; Seine Hauptmerkmale sind: 2.54mm Pitch Receptacle für Board-to-Board Verbindung.


1, JAE | JAE Connectors | Japan Avionics PS Series 2.54 mm pitch board-to-board receptacle connector main product specification details:

Number   of Contacts1 row: 5, 10,   15, 20, 25, 30, 2 rows: 10, 16, 20, 26, 30, 34, 40, 50, 60
Contact Pitch2.54 mm (1 row/ 2 rows)
Rated Current3 A
Dielectric Withstanding Voltage1000 VACr.m.s. (1 minute)
Insulation Resistance1000 megohm min.
Contact Resistance10 milliohm max.
Operating Temperature Range-55 deg. C to +85 deg. C
Applicable PCB Thickness1.6 mm

------------------------------------------------------------------------------------------------

2, Japan JAE | JAE Steckverbinder | Japan Avionics PS Serie 2,54 mm Pitch Board-to-Board Buchsenstecker Hauptmaterialnummer / Typ:

PS-10SD-D4T1-1PS-16SD-D4TS1-1PS-26SD-D4T1-1PS-34SD-D4T1-1PS-50SD-D4TS1-1
PS-10SD-D4TS1-1PS-20SD-D4T1-1PS-26SD-D4TS1-1PS-34SD-D4TS1-1PS-50SG-D4TS1-1E
PS-10SD-S4T1-1PS-20SD-D4TS1-1PS-30SD-D4T1-1PS-40SD-D4T1-1PS-5SD-S4T1-1
PS-10SD-S4TS1-1PS-20SD-S4T1-1PS-30SD-D4TS1-1PS-40SD-D4TS1-1PS-5SD-S4TS1-1
PS-15SD-S4T1-1PS-20SD-S4TS1-1PS-30SD-S4T1-1PS-40SG-D4TS1-1EPS-60SD-D4T1-1
PS-15SD-S4TS1-1PS-25SD-S4T1-1PS-30SD-S4TS1-1PS-50SD-D4T1-1PS-60SD-D4TS1-1
PS-16SD-D4T1-1PS-25SD-S4TS1-1


------------------------------------------------------------------------------------------------

3, Japan JAE Steckverbinder--JAE|Japan Avionics PS Serie 2.54 mm Pitch Board-to-Board Buchsenstecker Dieses Produkt Verkäufer:

Agency Sales [Japan JAE Steckverbinder - JAE | Japan Avionics PS-Serie 2,54 mm Pitch Board-to-Board-Buchse Steckverbinder] und den Inhalt des zweiten Elements in der Tabelle Liste aller (Anzahl / Typ) Steckverbinder Produkte, wenn Sie kaufen oder zu verstehen, was wir bieten können Steckverbinder | Kabelbaum | Draht und Kabel Produktlösungen, herzlich willkommen, uns über den folgenden Weg zu kontaktieren.
